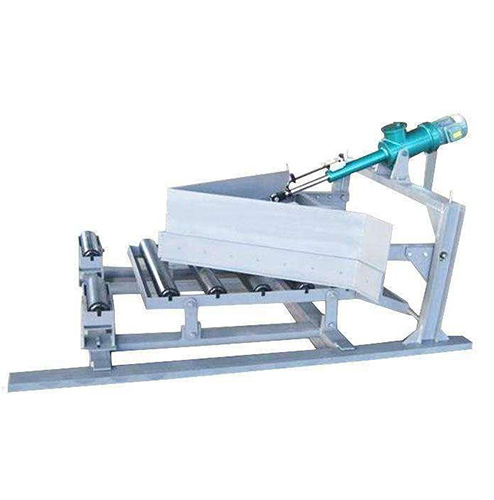

The electric plow type unloader is a new type of unloader, which can be equipped on various types and bandwidth belt conveyors as a multi-point discharge device. It has four discharge modes: double side, right side, left side and eccentric. Widely used in electricity, metallurgy, and coal.
Structural features:
1. The main and auxiliary combination plowshares are used. The plow plate is made of wear-resistant cast iron. The head has a small angle shape and is shaped in the tail arc. The plow plate can better adhere to the rubber surface and the discharge material is smoother and cleaner.
2. The plowshare can be adjusted up and down, and the angle can also be adjusted by the tie rod. It can be adjusted as needed during use.
3. The whole machine has high strength and no jitter.
4. The applicable material particle size is 0~200mm, and the belt speed is 0.8~3m/sec.
5, applicable bandwidth: 500-1400mm.
